For UK thin-coat render and external wall insulation work, render corner beads are the rigid PVC, aluminium, or steel profiles that turn a vulnerable arris into the longest-lasting edge on the facade. The corner range here sits within the broader render beads and mesh hub, covering fourteen variants across material, depth, and geometry — from the default coextruded PVC-with-mesh bead through to arched profiles for curved openings, no-mesh depths from 6 mm to 15 mm, and aluminium for high-impact zones.
What Render Corner Beads Do in a Render or EWI System
A render corner bead is a rigid profile embedded into the wet basecoat at every external 90° corner on a thin-coat render or EWI build-up. It serves three roles at once: a depth gauge for uniform basecoat thickness, a continuous impact shield at an edge that takes 80% of the wall's accidental knocks, and — on PVC-with-mesh variants — a reinforcement bridge that ties the corner zone into the wider fibreglass mesh field via 100 mm wings overlapping the adjacent reinforcement sheet. The geometry holds a straight, plumb line across 2.5 m or 3.0 m, producing the crisp shadow line under raking light that defines a professional facade.
The 14 profiles in this collection cover every external corner condition on a typical UK render programme — vertical corners on EWI elevations, curved reveals around arched openings, high-traffic ground-floor commercial faces, and wet-plaster internal angles where a different material logic applies. The right corner bead is rarely the cheapest one; it's the one matched to render depth, substrate, and exposure for the elevation in question.
What Makes a Corner Bead Worth Specifying
- Permanent impact protection at the arris — hardened PVC and aluminium cores absorb mechanical loads at the most exposed point of every elevation, shielding the finish from chips and contact damage across a 25-year service life.
- Corrosion-free in alkaline basecoats — PVC is chemically inert at the high pH levels cementitious basecoats produce during cure, eliminating the oxide-staining risk that telegraphs through light-coloured silicone finishes.

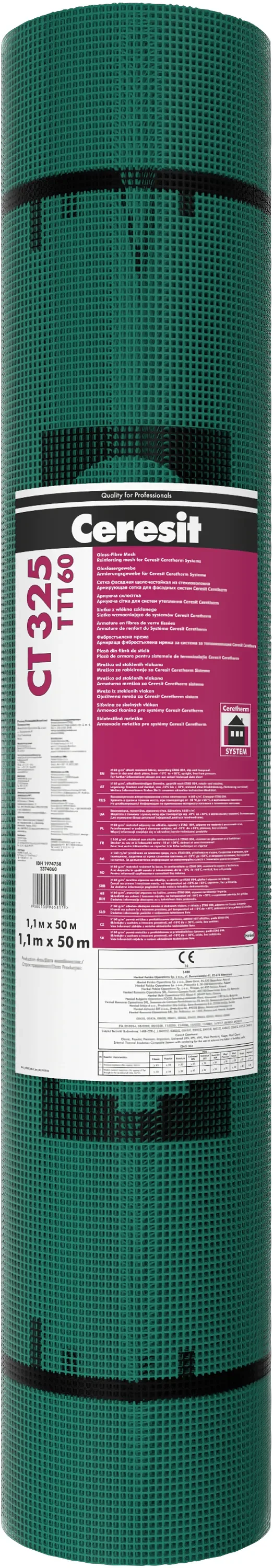

- Factory-bonded alkali-resistant mesh wings — on PVC-with-mesh variants, 100 mm wings tie directly into the field Ceresit CT325 160 g/m² fibreglass mesh, removing on-site mesh-patching at every corner.
- Depth range from 4 mm to 15 mm — profile depths cover the full UK render spectrum from thin-coat silicone over insulation through to traditional sand-and-cement and heavy mineral systems.
- Precision vertical alignment — the rigid spine acts as a trowelling guide, allowing one installer to hold true plumb across a full storey height without continuous re-checking.
- UV-stable, weather-tested formulations — UK-climate-rated PVC resists embrittlement and discolouration under decades of exterior exposure, including coastal and wind-driven rain environments.
Selection Guide — Find Your Corner Bead in 30 Seconds
Identify your render system or corner condition, read across to the matched profile, and check the standout spec to confirm fit with your basecoat depth and exposure.
| Render System or Corner Condition | Recommended Profile | Standout Spec |
|---|---|---|

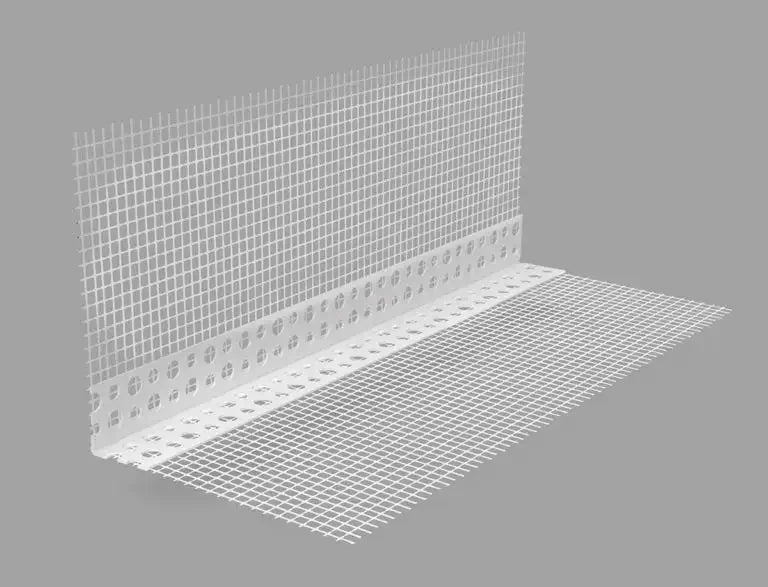

| EWI and thin-coat silicone external corners | Corner PVC Bead with Mesh 2.5m | 145 g/m² wings · 2,500 mm · coextruded |
| Medium-coat render, traditional sand-cement | 6 mm PVC Corner Bead No Mesh | 6 mm depth · 2.5 m · alkali-resistant |

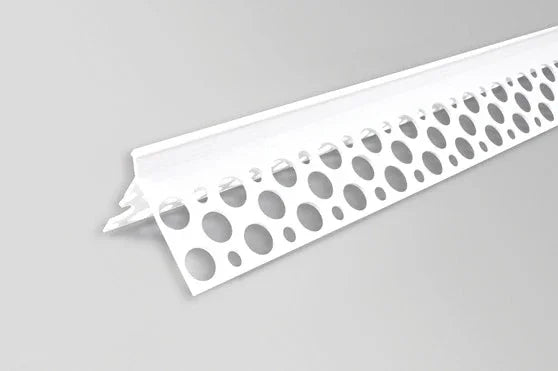

| Thick-coat EWI, heavy mineral finishes | 10 mm PVC Corner Bead No Mesh | 10 mm depth · 2.5 m · UV stable |
| Maximum-depth insulated render systems | 15 mm PVC Corner Bead No Mesh | 15 mm depth · 2.5 m · heavy EWI |

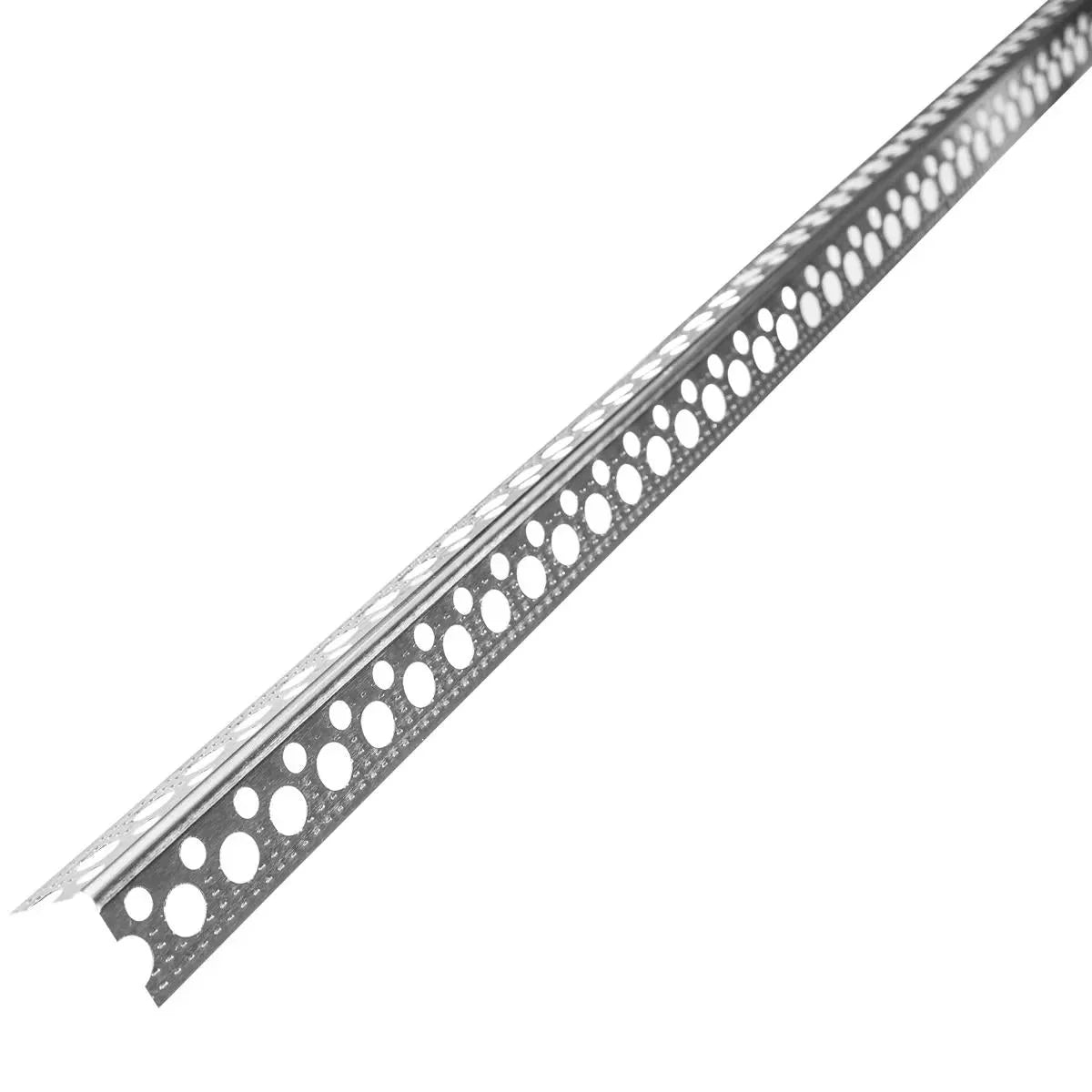

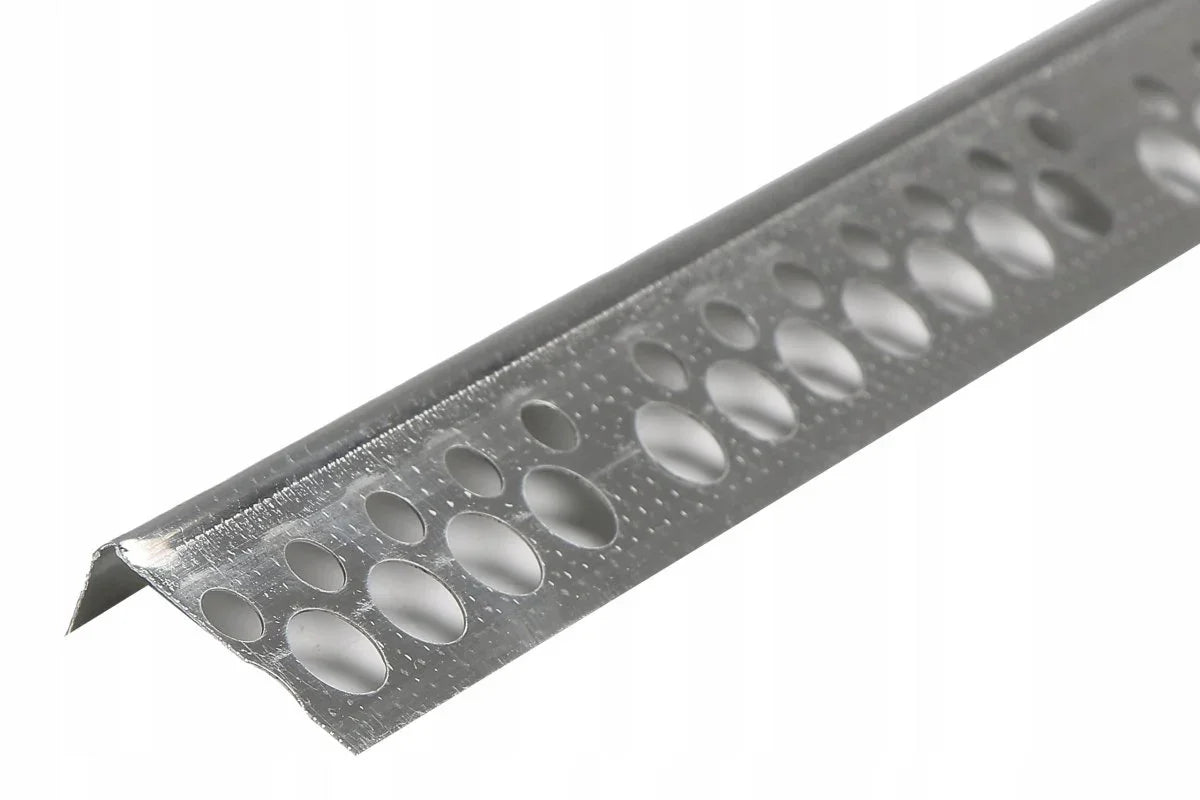

| High-traffic commercial corners and plinths | Aluminium Corner Bead 3.0m | 3,000 mm · rigid aluminium · impact-rated |

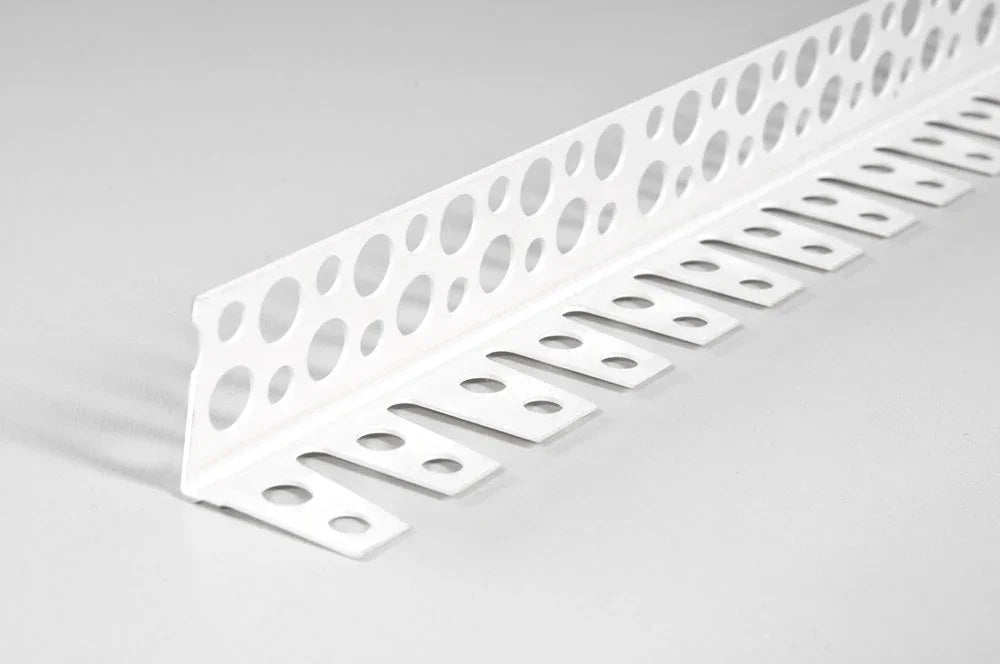

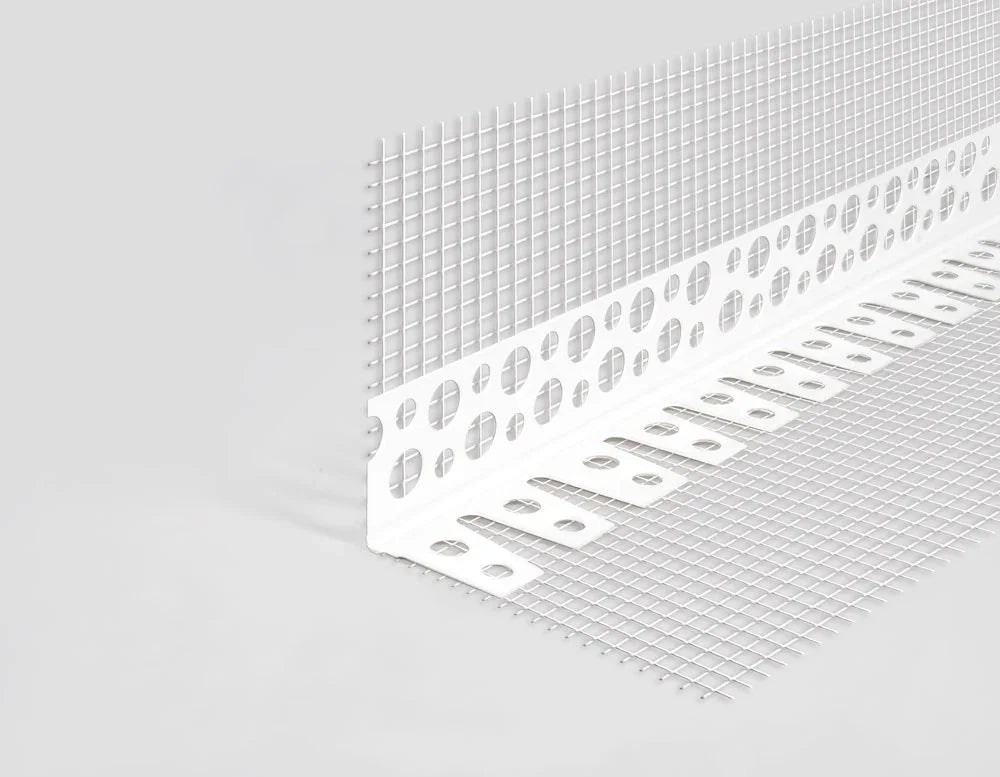

| Curved window heads and arched openings | PVC Arched Corner with Mesh | Notched spine · mesh wings · 2.5 m |
| Atlas system-matched thin-coat corners | Atlas 4 mm PVC Corner with Mesh | Atlas system · 4 mm · mesh wings |

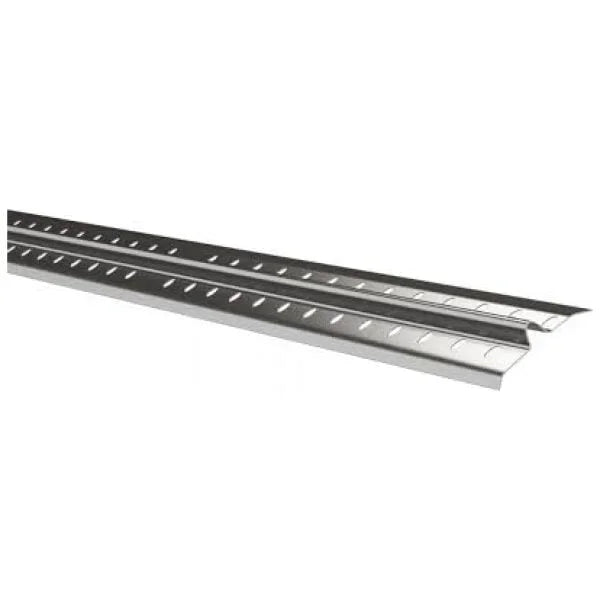

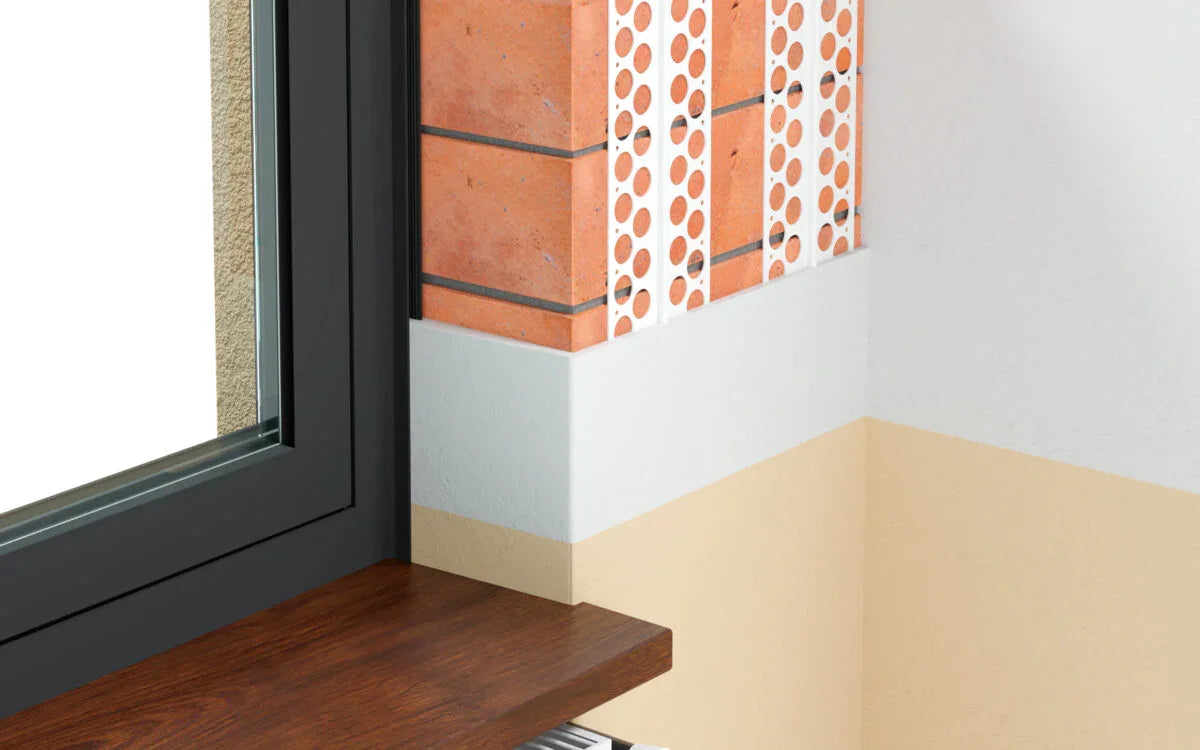

| Wet plaster and sand-cement internal render | Wet Plaster Aluminium Corner 3m | Aluminium · 3,000 mm · interior route |
For most external silicone or acrylic render projects over insulation, the PVC corner bead with mesh is the working default. Move up to the no-mesh depths where the render build-up exceeds 10 mm, switch to aluminium where ground-floor impact resistance is the priority, and reach for the arched variant whenever the geometry isn't a straight 90° vertical edge.
How Corner Beads Install in a Render or EWI System
Corner beads are embedded into a fresh strip of basecoat adhesive rather than fixed mechanically to the substrate. The principle is simple — the basecoat must push through the mesh perforations along the entire length of the bead so the wings end up inside the reinforced layer, not sitting on top of it.
- Step 1 — Butter the corner. Apply a continuous 100 mm-wide basecoat strip down each face of the arris.
- Step 2 — Press the bead in. Square the PVC nose to the corner; basecoat squeezes through the mesh perforations.
- Step 3 — Check plumb. Confirm verticality every metre with a long spirit level before the basecoat starts to set.
- Step 4 — Lay field mesh under the wings. Tuck the main fibreglass sheet under the bead's mesh wings, with at least 100 mm overlap, while the basecoat is still wet.
- Step 5 — Reinforce any joints. Butt cut ends gap-free; bridge each join with a 250 × 250 mm mesh patch centred over the junction.
For the full sequence — including adhesive bed depth, mesh layup order, reveal detailing, and trimming technique — our step-by-step corner bead installation guide for UK installers walks through every stage with practical detail from working sites.
What UK Installers Do Differently With Corner Beads
The points below come from contractors and developers ordering corner beads across Renders World facade programmes — small habits that separate a smooth basecoat day from a callback in two seasons.
- Pre-cut beads to elevation height on a mitre saw before basecoat day, keeping offcuts for patching around meter boxes and service penetrations.
- Stagger butt joints away from window-head height so the splice sits in a lower-stress zone where the reinforcement layer absorbs movement more effectively.
- Work bead lengths within the basecoat's 15–20 minute open time, applying adhesive in 200 mm-wide strips on each face and embedding the bead before skinning begins.
- Trim with bead-cutting scissors rather than tin snips to avoid crushing the PVC nose and deforming the arris geometry at cut ends.
- Order the field mesh and corner beads together so both reinforcement elements come from a chemically matched stock batch and behave as one composite layer under thermal movement.
Is a Corner Bead Range Right for Your Project?
- Best for: external thin-coat silicone, silicate, mineral, and acrylic render systems, plus full EWI build-ups on masonry, timber-frame, and cement-board substrates.
- Choose your profile: use the Selection Guide above to route from render system or corner condition directly to the matched product — depth, material, and geometry confirmed in one read.

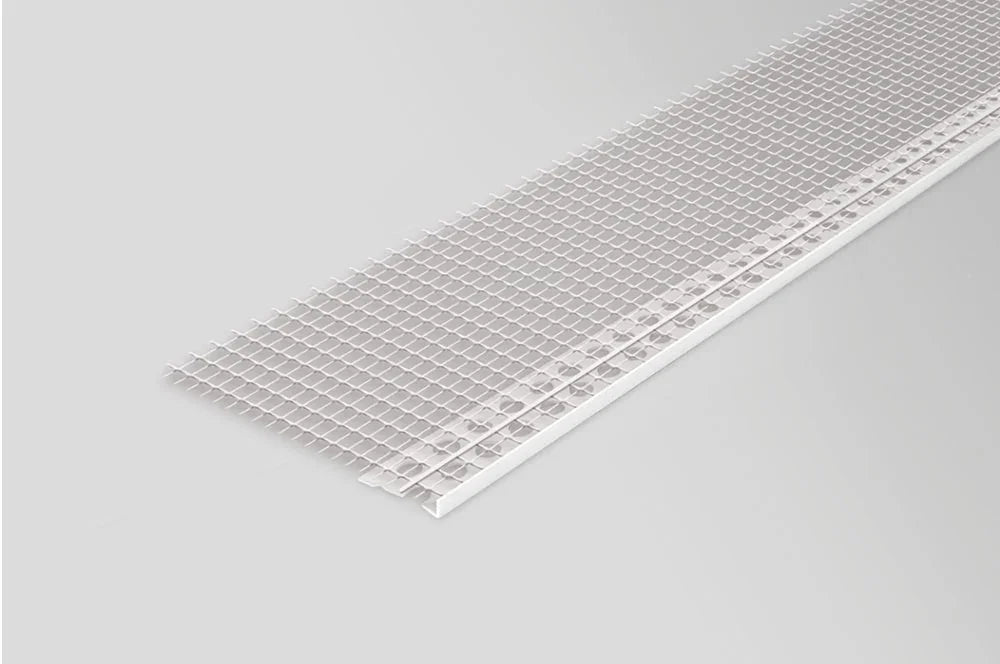

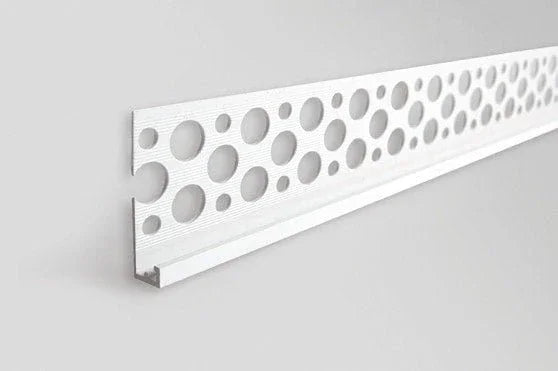

- For termination edges instead: where render meets a window frame, door jamb, or material transition, see our render stop beads collection for the depth-matched termination profiles in 3 mm, 6 mm, 10 mm, and 15 mm options.

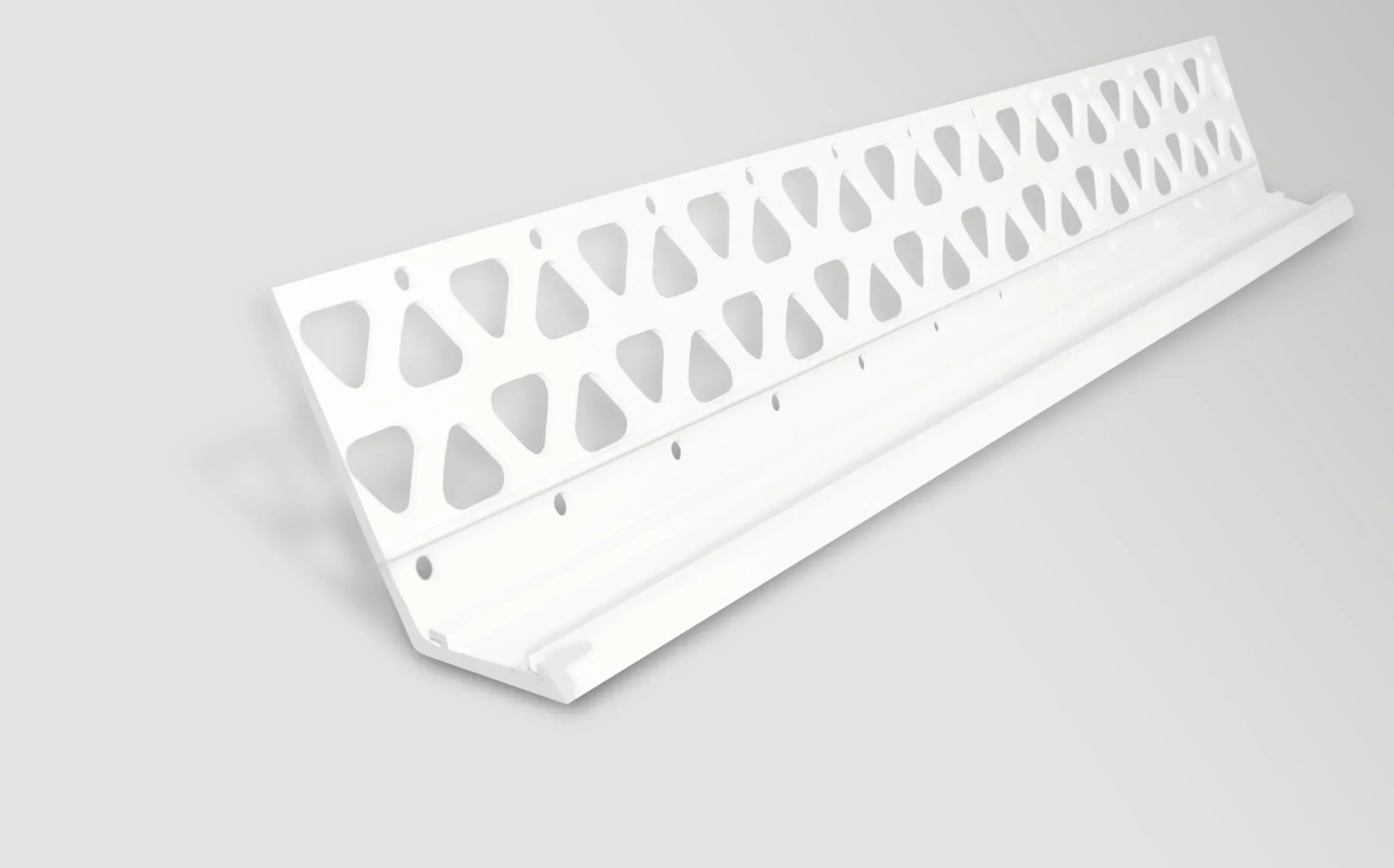

- For water run-off at base level: at DPC level and above openings, the bellcast beads collection provides the drip profiles that channel rainwater clear of the plinth zone and protect lower elevations.
- For detailing around openings: for the full junction-by-junction method around windows, doors, and reveals, our pillar guide on render detailing around windows and doors covers every condition in trade detail.
FAQ — Corner Beads Installation, Compatibility, Selection
What is the difference between PVC and aluminium render corner beads?
PVC profiles are chemically inert in the high-pH basecoat environment and entirely corrosion-proof, which is why they are the default specification for external rendering and EWI in the UK. Aluminium beads offer greater rigidity and are typically selected for high-traffic ground-floor commercial facades or internal wet-plaster work where mechanical strength at the edge is the primary concern. For most residential and light-commercial EWI projects, PVC with integrated mesh delivers the best balance of installation speed, durability, and weather resistance.
Do I need to add separate mesh if the bead already has mesh wings?
When using a PVC corner bead with factory-bonded mesh, the wings overlap directly with the main reinforcement layer — no additional mesh strip is required at the corner itself. The critical detail is a minimum 100 mm overlap between the bead's mesh wings and the adjacent fibreglass reinforcement sheet, which ties the corner into the continuous tensile network across the facade. For no-mesh PVC variants, bed a separate strip of alkali-resistant fibreglass mesh over each wing during the basecoat stage to achieve the same reinforcement continuity.
Which bead thickness should I choose for my render system?
Match the bead depth to the designed render build-up. A standard-depth PVC profile suits thin-coat silicone or acrylic renders, while thicker traditional and heavy-coat EWI finishes are best served by the 10 mm or 15 mm no-mesh variants. Selecting the correct depth ensures the bead nose sits flush with the finished surface, producing a clean edge without packing or shaving on site.
Are these corner beads suitable for coastal or high-exposure UK sites?
All PVC profiles in this range are designed for full exterior exposure across UK climate zones, including coastal and wind-driven rain environments. PVC does not corrode in salt-laden air, and UV-stabilised formulations resist embrittlement across decades of service. For the highest-exposure commercial elevations, pairing a PVC corner bead with a higher-grammage reinforcement mesh further strengthens the corner zone against combined mechanical and weather loads.
How much do render corner beads cost?

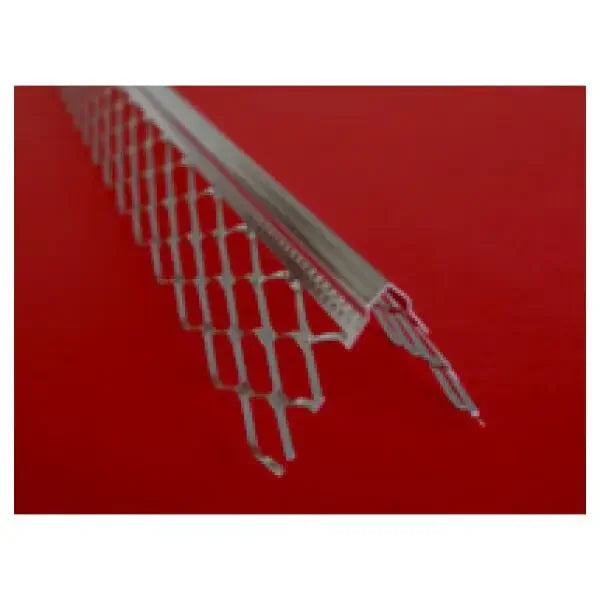

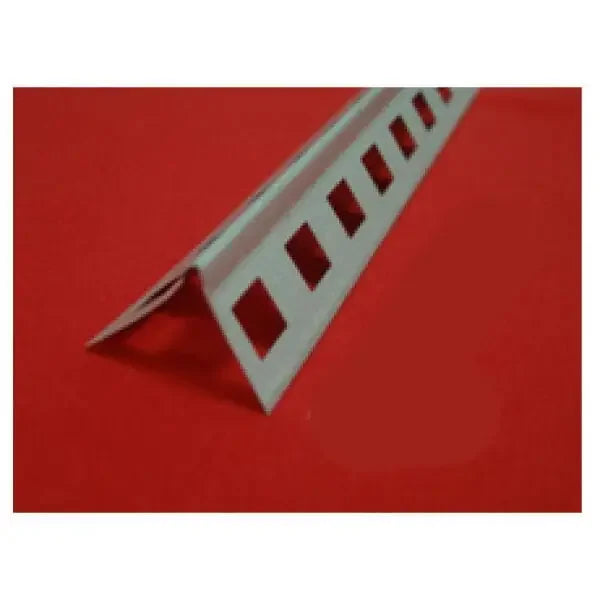

Individual profiles start from approximately £1.70 for steel corners and rise to around £4.90 for specialist arched PVC beads with mesh, with standard PVC corner beads with mesh sitting around £3.00 per 2.5 m length. A typical three-bedroom semi-detached property takes 25–35 linear metres of corner bead, so the full corner-bead specification represents a modest proportion of the overall facade materials budget. Trade-account volume pricing is available — send your bill of materials to the technical desk for project-matched quantities and rates.
