Description

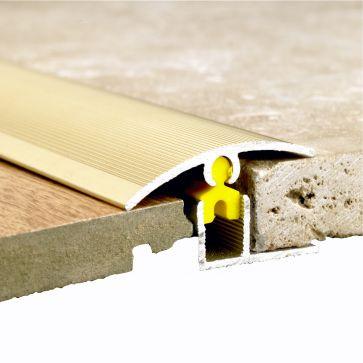

The Tile Rite gold threshold strip is a 900 mm doorway strip that joins two different floors where they meet at a door. It comes as a base plate, an aluminium top in a gold finish and two sizes of clip, and the clips let it take up a difference in floor height of up to 15 mm. It sits with the tile trims at Renders World.
What the Gold Threshold Strip Does
Where tiles meet another surface in a doorway, the two edges need covering and holding. A gold threshold strip does both: the base plate sits on the sub floor, and the gold top clips over it and grips each edge.
- Tile to tile and beyond. Tile Rite makes it for tiles to tiles, tiles to hardwood, laminate wood or carpet, and for laminate to laminate.
- Different heights. Two clip sizes give variable height adjustment up to 15 mm, so the top can bridge a step from one side to the other.
- Room to move. The strip allows for expansion on either side of the doorway.
- Aluminium top. The top is 6063-T5 aluminium with a gold finish.
- For indoor doorways. Tile Rite specifies it for indoor use.
How to Fit the Doorway Strip
- Prepare the sub floor. It must be clean, dry and level. Cut the base plate of the threshold strip to the width of the doorway.
- Fix the base plate first. Before laying the new floor, peel the protective tape off the base plate and press it firmly onto the sub floor, leaving a 10 mm gap to the existing floor. Do not let that gap exceed 10 mm.
- Lay the new surface. Lay your tiles, wood or laminate over the base plate, again leaving a 10 mm expansion gap up to its raised channel.
- Cut and clip the top. Cut the gold top to length with a hacksaw. Choose the clip size by the thickness of the new surface and the drop from one side to the other, then slide the clips into the socket under the top.
- Tap it home. Place the top over the base plate with the pips on its underside over the lower side, and tap it down until both edges are gripped. Tap gently so the gold face stays unmarked.
Fitting it between two tiled rooms? The tiles go down with one of the tile adhesives, and the joints are filled with a product from the grouts and silicones.
Specification
| Detail | Tile Rite doorway strip DSG262 |
|---|---|
| Length | 900 mm |
| Finish | Gold |
| Height adjustment | Up to 15 mm |
| Top | 6063-T5 aluminium |
| In the pack | Base plate, aluminium top, small and standard clips |
| Floors joined | Tile, hardwood, laminate, carpet |
| Use | Indoor door thresholds |
| Maker code | DSG262 |
| Barcode | 5019788002620 |
| Maker | Tile Rite |
Want a different finish from the gold threshold strip? The same Tile Rite strip comes in silver (DSS263) and black nickel (DSB249).
Care
- The strip needs no special maintenance.
- Clean surface dirt with a pH neutral detergent, rinse with clean cold water and wipe dry with a soft linen cloth.
Ordering, Delivery and Returns
- Dispatch — Renders World sends orders out the same day when the stock is there.
- Delivery — the team quotes it after the order; parcels up to 25 kg travel next day and every delivery is kerbside.
- Collection — at the counter, Unit 9A, Central Trading Estate, Southampton SO14 5JP: Monday to Friday 7am to 5pm, Saturday 7am to 12pm.
- Returns — goods bought directly from Renders World can come back within 14 days in original condition; special orders and promotion purchases are excluded.
FAQ
How much height difference can it cover?
Up to 15 mm. The gold threshold strip comes with a small and a standard clip; pick the one that suits the thickness of the new surface and the drop between the two sides.
Which floors can it join?
Tiles to tiles, hardwood, laminate wood or carpet, and laminate to laminate.
What gap do I leave when fitting it?
10 mm between the base plate and the existing floor, and 10 mm between the new floor and the raised channel of the base plate.
Can I use it on an outside door?
Tile Rite specifies this strip for indoor use.
How do I cut it to my doorway?
Cut the base plate to length, then cut the gold top to fit with a hacksaw.
